Basics of Impedance Flow Cytometry

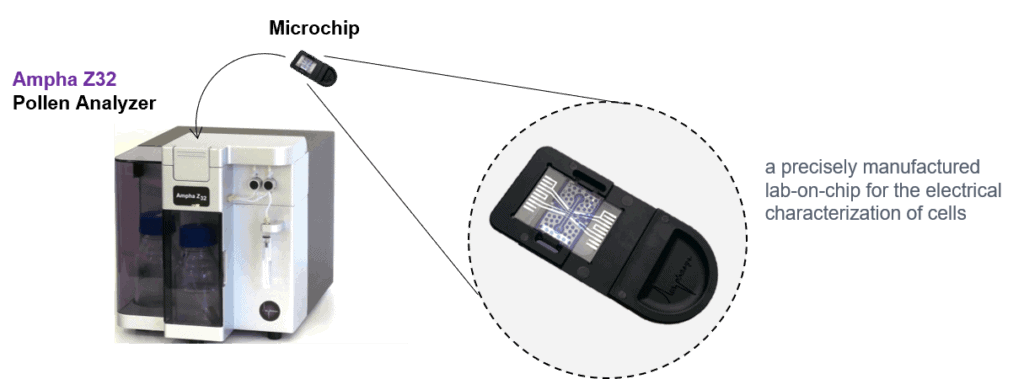

In Impedance Flow Cytometry, we suspend cells in a fluid, and then pump them through a highly sensitive microchip. In the microchip, the cells travel along a micro-channel (imagine yourself walking through a tunnel), and exactly in the middle of the channel they are exposed to an electric field. The passage of each cell disturbs that electric field in a characteristic manner. That allows the cytometer to extract an impedance signature from every cell. As viable and dead pollen cells have different electrical properties, we can easily distinguish them. And all at a tremendous rate of up to 1’000 cells per second.

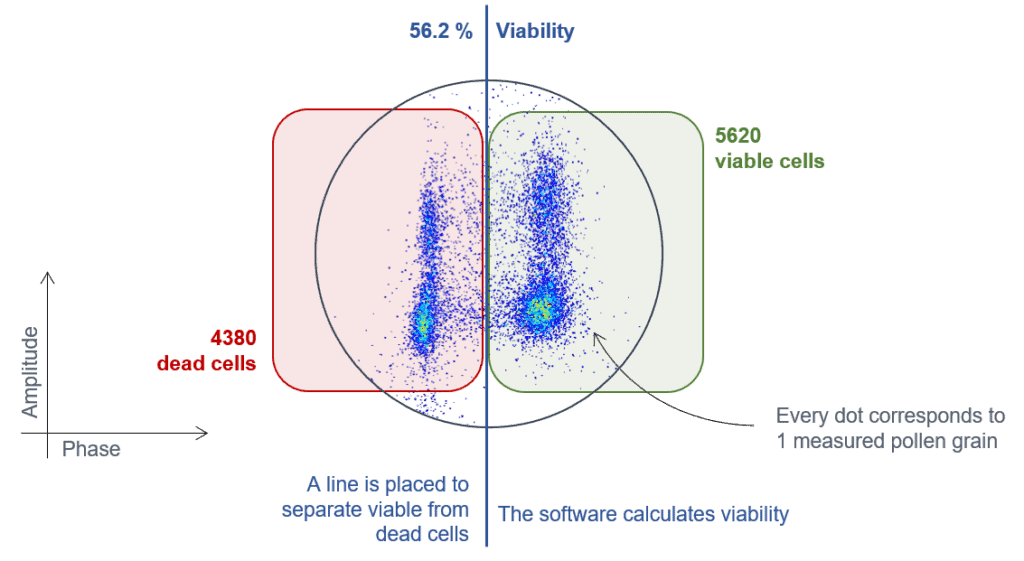

The phase axis (x-axis) is our viability axis. The amplitude axis (y-axis) reflects the size of the cell and its position in the microchannel. Every measured pollen grain results in one dot in the scatter plot. Clusters of thousands of cells (dots) are formed during a measurement. The number of dots in those clusters can be quantified using simple so-called gating tools. That’s how you get your pollen viability.
